| 2D Amplitude and Polar Plots |
Dual Trace Polar Plot
Click for Larger View

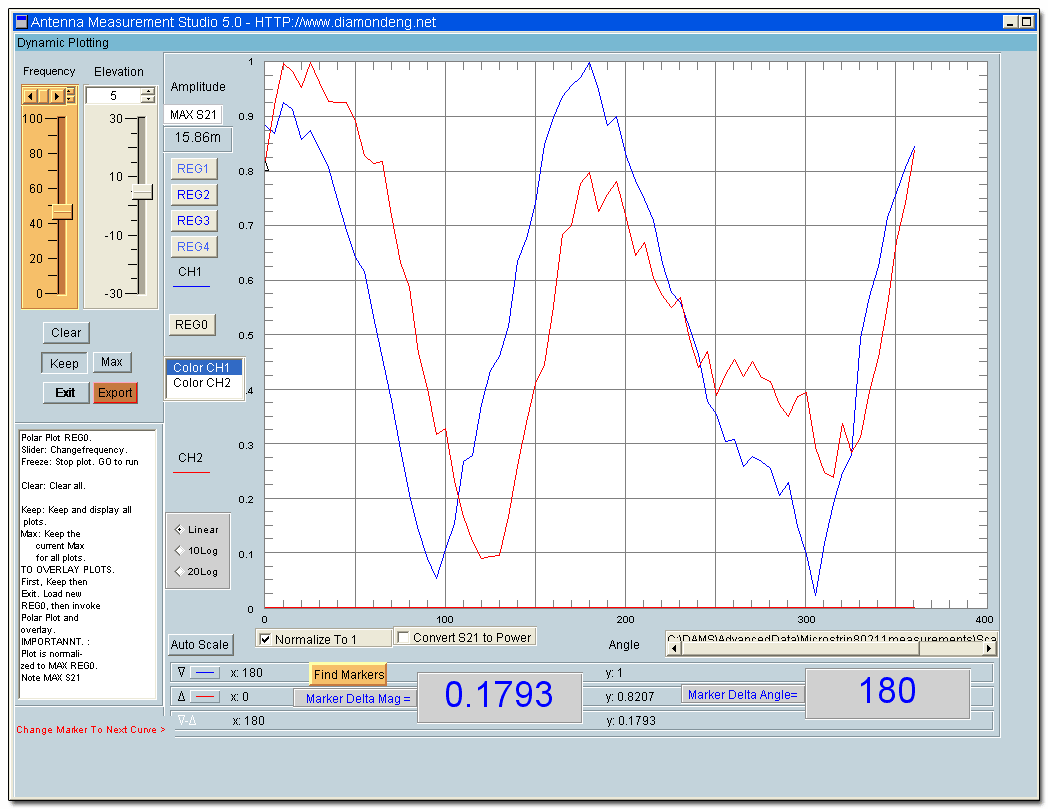

Dual Trace Amplitude Plot
Click for larger view |
Dual Trace Plots - Features:
- Dual-marker function
- Selectable linear / 10Log and 20Log formats
- Instant delta DB/Angle marker readout
- Selectable scale
- Export formatting options
|
3D and Spherical Plots
|
|
3D and Spherical Plots - Features:

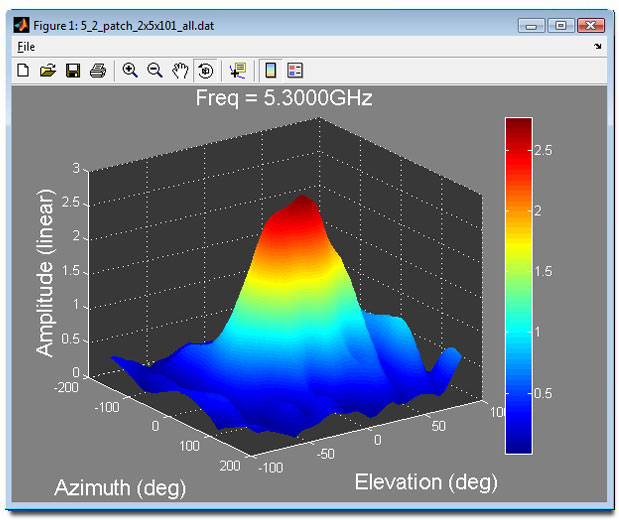

- Full 3D interface

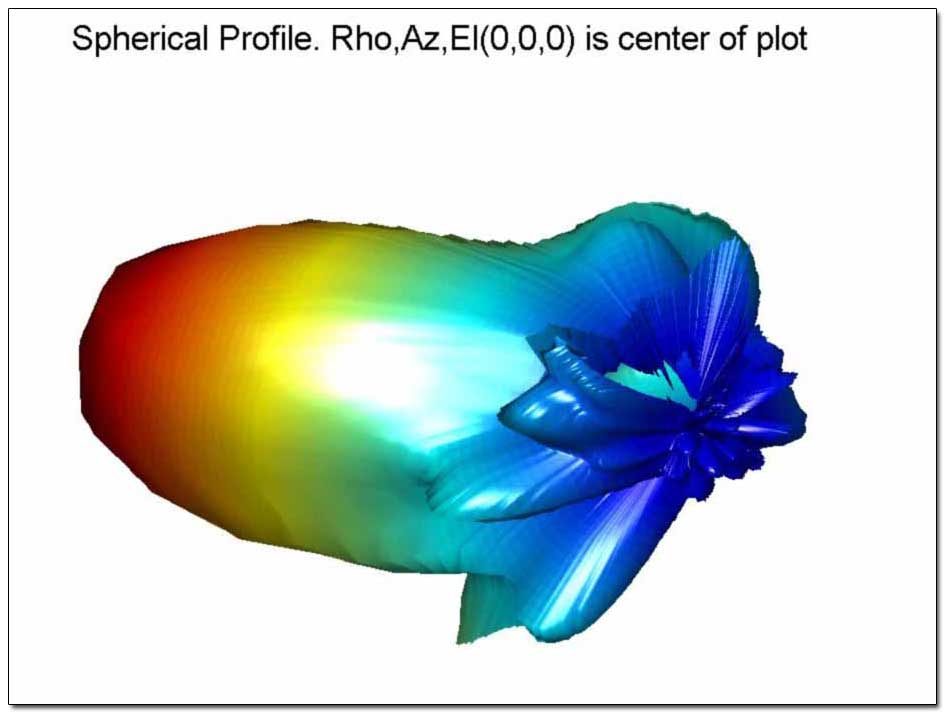

- Map data onto a sphere
- Plot data at any frequency
- Overlay features
- Multiple display options
|
|
|
