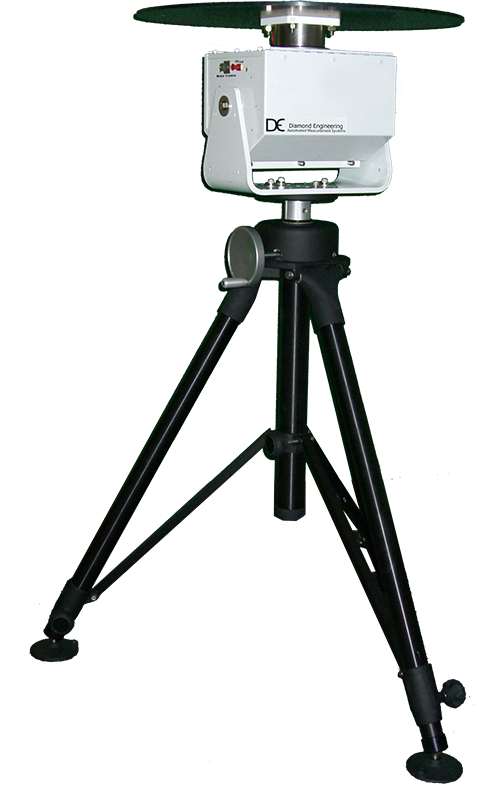

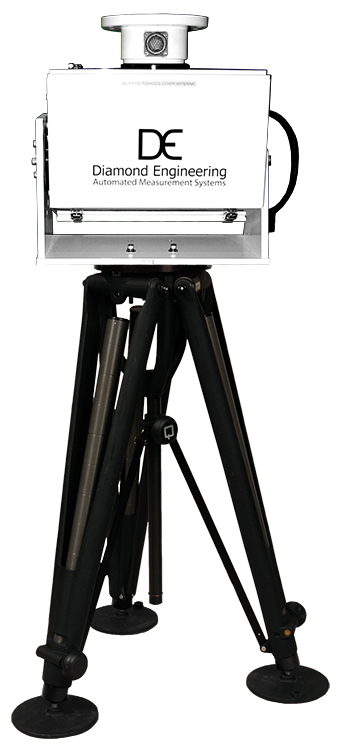

System Features - DAMS x000 Series PDF Print Email

For Small to Medium Sized Antennas

All DAMS x000 Series systems feature:
  • Lightweight acrylic construction
  • Professionally machined parts
  • Precision calibrated RF cables
  • Silver/carbon rotary joints
  • Feature-packed software
  • Detailed, full-color users manual
  • Full technical support
  • Parts and labor warranty

Model Comparison

5000 6000 7000

Frequency Range		 DC to 6 GHz DC to 18 GHz DC to 40 GHz

Movement Range		 Azimuth: 360º Continious
Elevation: ± 45º		 Azimuth: 360º Continious
Elevation: ± 45º		 Azimuth: 360º Continious
Elevation: ± 45º

Resolution		 Azimuth: .125º
Elevation: .10º		 Azimuth: .0625º
Elevation: .10º		 Azimuth: .0625º
Elevation: .10º

Weight Capacity		 10 lbs. 20 lbs. 20 lbs.

Included Cables		 Two 10' Low-loss SMA Cables Two 10' ULTRA-Low-loss SMA Cables Two 10' ULTRA-Low-loss 40 GHzCables

Rotary Joint		 6 GHzRotary Joint 18 GHzPrecision Rotary Joint 40 GHzPrecision Rotary Joint

Included Software		 DAMS Antenna Measurement Studio DAMS Antenna Measurement Studio Pro DAMS Antenna Measurement Studio Pro

Spherical Plotting Module		 Not Included Included Included

Included Accessories		 Standard Accessory package All Accessories All Accessories

Warranty		 Full 1 year Warranty Full 2 year Warranty Full 2 year Warranty
